Hanchen RKX-3306 Optical Fiber Identifier Fiber Optic Ray Recognizing 800-1700nm Tester with Four Adaptors

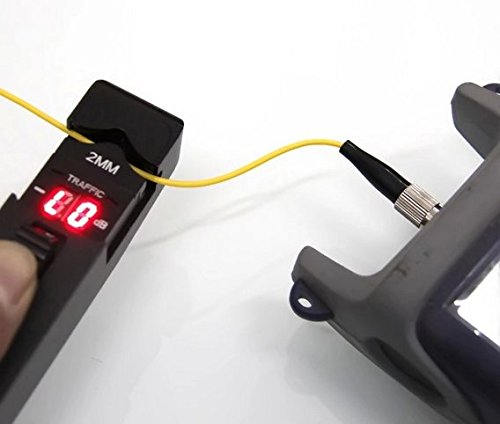

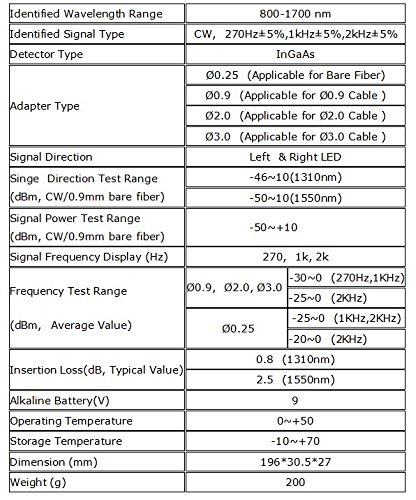

Hanchen Description Optical fiber identifier is an optical fiber maintenance tool for nondestructive optical fiber identification, which can be detected in single-mode and multi-mode optical fiber. During maintenance, installation, wiring, and recovery, it is often necessary to find and separate a particular fiber without interrupting the service. By transmitting signals of 1310nm or 1550nm band modulation tones (270 Hz, 1 kHz, 2 kHz) into the fiber at one end, it is recognized on the circuit by an identifier, which can also indicate the direction of the light. Features 1.It is safe and effective to identify the direction and frequency of light without cutting the fiber and can be used together with every kind of Optical Power Meter. 2.There are four adapter heads available: Ø0.25, Ø0.9, Ø2.0 and Ø3.0. (Please refer to the third picture) 3.Efficiently identifies the traffic direction and frequency tonal(270Hz,1KHz,2KHz) with audible warning. 4.Durable metal housing and quality construction. For more information, please refer to the last picture. Note

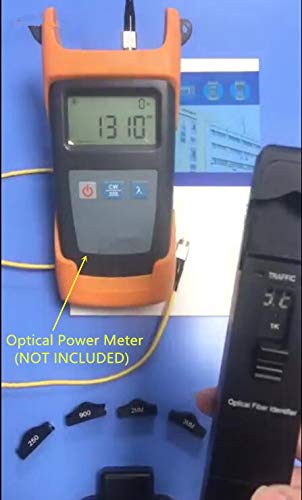

• NOTE: The optical fibers that can be matched with this optical fiber identifier are: 3mm or 2mm (optical fiber patch cord), 0.9mm optical fiber patch cord inner cable (tightly sheathed optical fiber), 0.25mm bare fiber (bare fiber without loose tube). Can be used together with every kind of Optical Power Meter(NOT INCLUDED). It is safe and effective to identify the direction and frequency of light without cutting the fiber.
• Used for identifying 3 commonly used signal frequencies, namely 2KHz, 1KHz, 270Hz; when the frequency is recognized, it will beep.

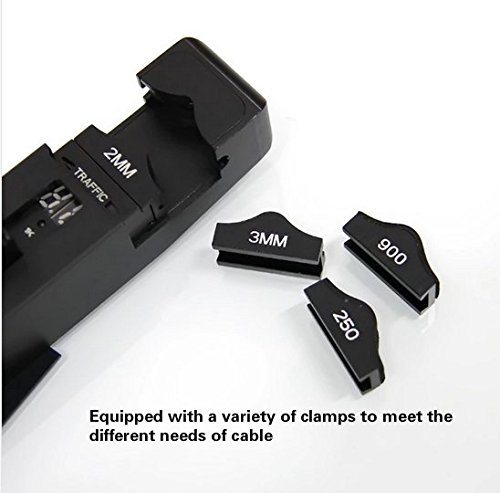

• Provide corresponding adapter heads for bare fiber and pigtail: Ø0.25, Ø0.9, Ø2.0 and Ø3.0. (Please refer to the third picture)

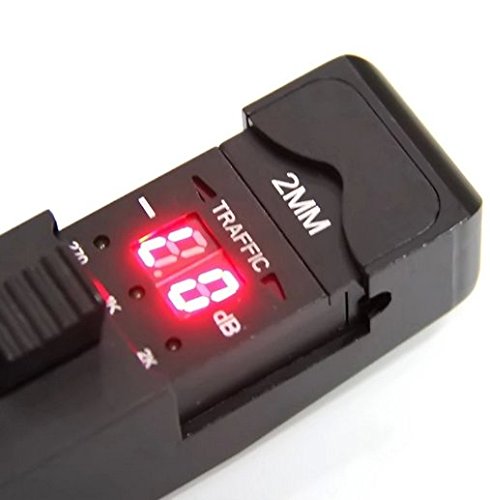

• It can display the optical power value of the fiber under test with LED indicator.
• Durable metal housing and quality construction.
• NOTE: The optical fibers that can be matched with this optical fiber identifier are: 3mm or 2mm (optical fiber patch cord), 0.9mm optical fiber patch cord inner cable (tightly sheathed optical fiber), 0.25mm bare fiber (bare fiber without loose tube). Can be used together with every kind of Optical Power Meter(NOT INCLUDED). It is safe and effective to identify the direction and frequency of light without cutting the fiber.
